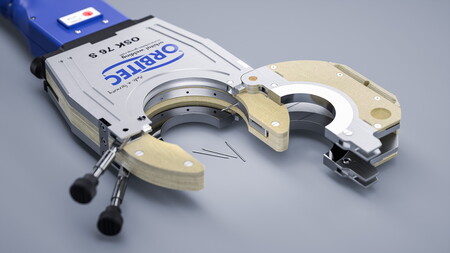

TIG orbital welding using tungsten electrodes
TIG orbital welding is carried out using tungsten electrodes. The required electrode length depends on the weld head and the outer diameter of the pipe. The level of precision demanded in orbital welding is often difficult to achieve in standard workshops, even when an tungsten grinder is available. Each new manual sharpening operatoen takes time and money. For this reason, Orbitec offers precision-machined disposable tungsten electrodes for use with Orbital weld heads. The following length table (PDF) contains an overview of the finished dimensions for all Orbitec weld heads depending on the pipe outer diameter: Download
Chart for Tungsten Electrodes

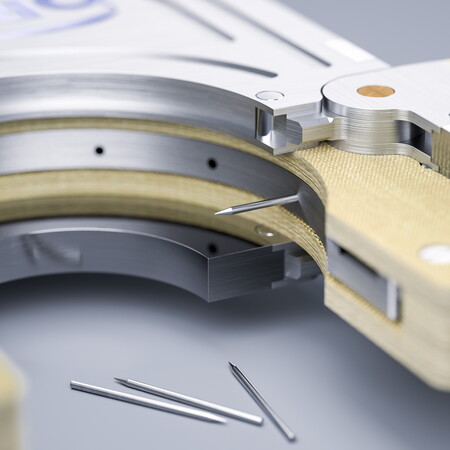

SuperArc: Precision-machined disposable tungsten electrodes for reproducible orbital welding. Cut your costs, because each new manual sharpening operation costs time and money. Standard quality WC 20 to DIN EN ISO 6848.
Finished dimensions for all ORBITEC weld heads as a function of the tube outer diameter.
- Ø 1,0 mm, All lengths available, Ø Tip surface 0,1 mm, Polished section 30°
- Ø 1,6 mm, All lengths available, Ø Tip surface 0,2 mm, Polished section 18°
- Ø 2,4 mm, All lengths available, Ø Tip surface 0,4 mm, Polished section 30°
SuperArc tungsten electrode Ø 1.0 mm
Item number: 1.2.0202+mm
Item number: 1.2.0202+mm
SuperArc tungsten electrode Ø 1.6 mm
Item number: 1.2.0200+mm
Item number: 1.2.0200+mm
SuperArc tungsten electrode Ø 2.4 mm
Item number: 1.2.0201+mm
Item number: 1.2.0201+mm
