Wire feeders Orbifeed



Orbifeed Wire Feed Units

Compact and lightweight wire feed unit mounted in a Peli case for 5kg (ORBIFEED 5) and 15kg (ORBIFEED 15) standard spools.

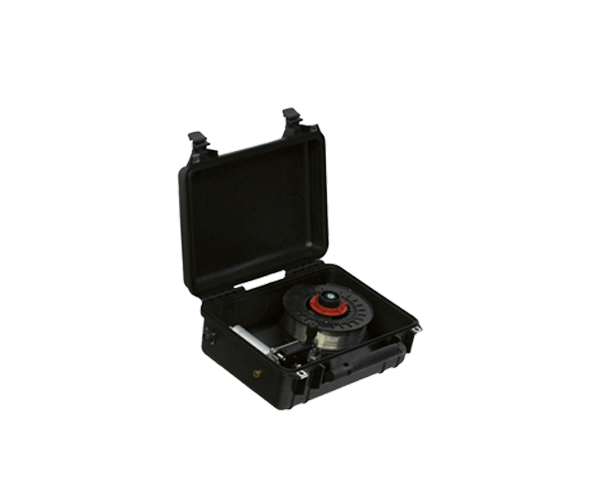

ORBIFEED 5 WIRE FEED UNIT, for 5 kg spools

Package includes:

  • Water-resistant and dust-proof Peli case
  • Four-roller drive mechanism
  • Delivery hose with inlet and outlet nozzles
  • Spool adapter
  • Wire feed console on OSW / TURN
  • Wire feed unit / controller connection cable
  • Item number:
  • 1.3.1701
request

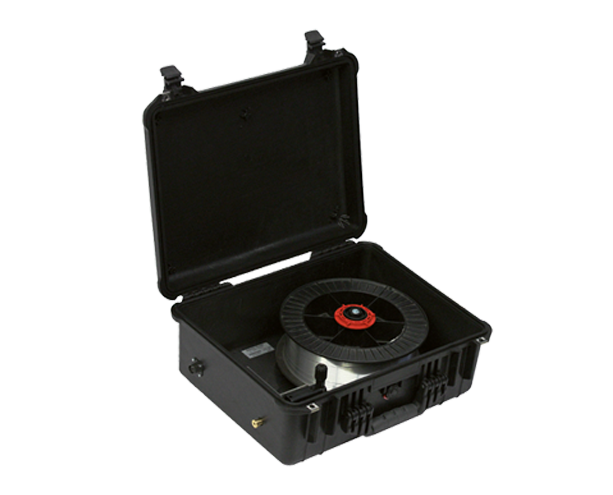

EXTERNAL WIRE FEED UNIT ORBIFEED 15, for 15kg – spools

Package includes:

  • Water-resistant and dust-proof Peli case
  • Four-roller drive mechanism
  • Delivery hose with inlet and outlet nozzles
  • Spool adapter
  • Wire feed console on OSW / TURN
  • Wire feed unit / controller connection cable
  • Item number:
  • 1.3.1702
request

Technical Data

Technical Data: Orbifeed 5 Orbifeed 15
Motor voltage and power: 24 VDC, 6 W 24 VDC, 6 W
Weight: approx. 7 kg approx. 8 kg
Dimensions (L x W x H): 406 x 330 x 174 mm 525 x 436 x 217 mm
Wire spools: Standard spools 5 kg Standard spools 5 and 15 kg
Wire diameter: 0,8 / 1,0 mm 0,8 / 1,0 mm

SPARE DELIVERY HOSE FOR ORBIFEED, COMPLETE, 4.5 m

  • Item number:
  • 1.3.1706
request

SPARE WIRE FEED SPIRAL, RED, 4.5 m

  • Item number:
  • 1.3.1719
request

SPARE TEFLON WIRE CORE FOR ORBIFEED, 4.7 m

  • Item number:
  • 1.3.1712
request

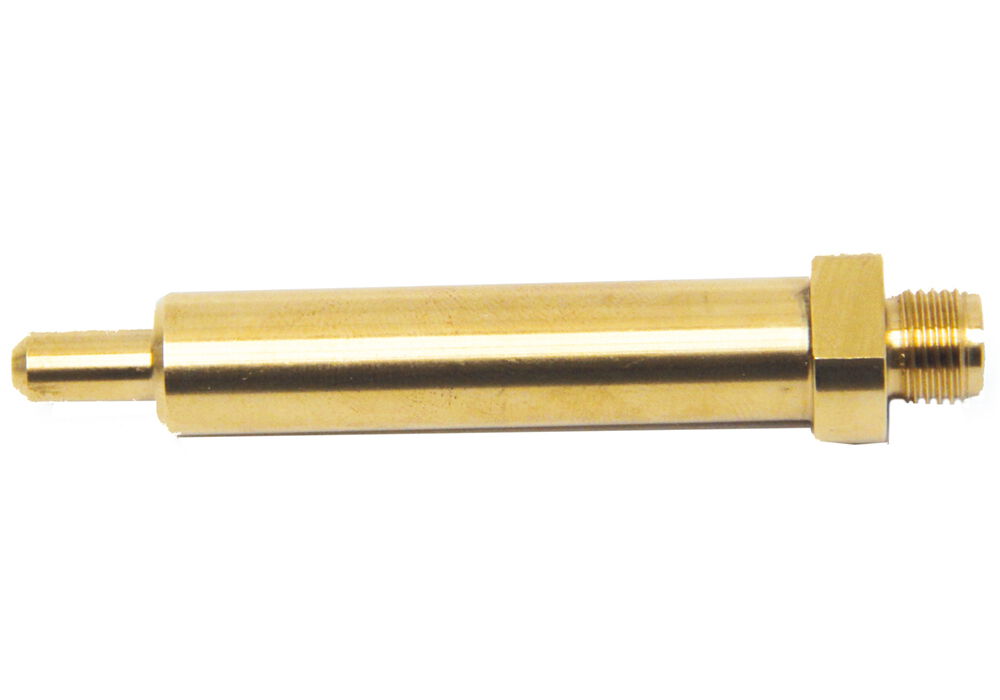

SPARE WIRE INLET NOZZLE

  • Item number:
  • 1.3.1704
request

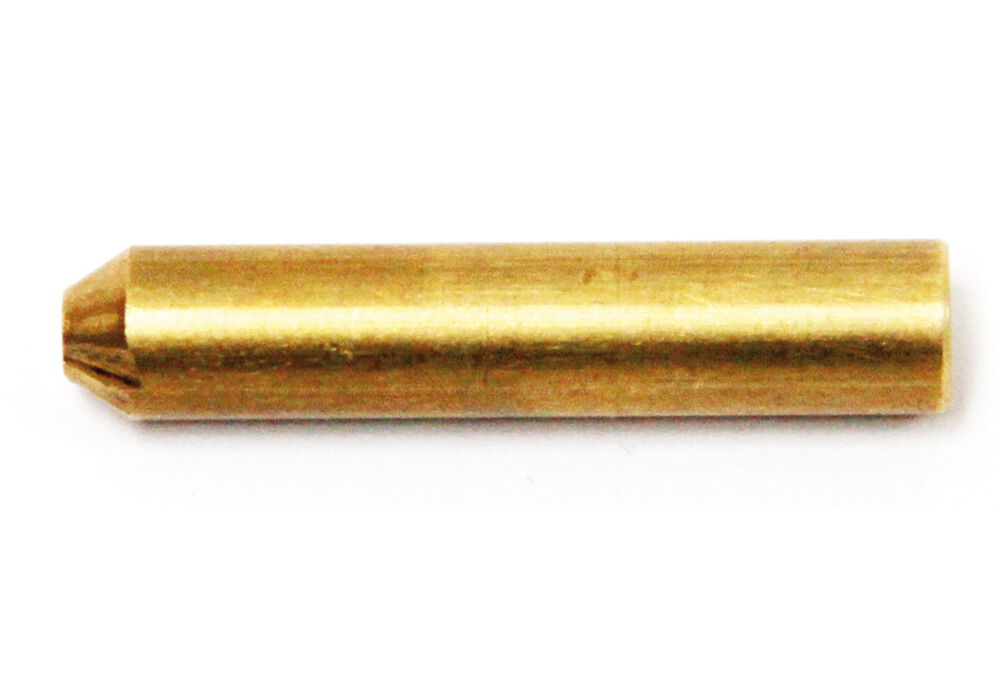

SPARE WIRE OUTLET NOZZLE (WIRE Ø 0.8 mm)

  • Item number:
  • 1.3.1720
request

SPARE WIRE OUTLET NOZZLE (WIRE Ø 1.0 mm)

  • Item number:
  • 1.3.1705
request

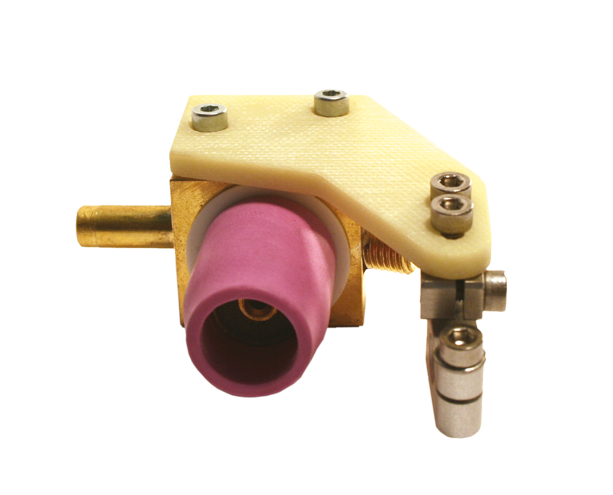

WIRE FEED CONSOLES

cpl., can be mounted on TIG OSW torch



OSW 40 WIRE FEED CONSOLE

Item number: 1.3.1710



"STANDARD" OSW 80 – 275 WIRE FEED CONSOLE

Item number: 1.3.1708



OSW 80 – 275 WIRE FEED CONSOLE, INTERNAL

Item number: 1.3.1709



OSW 80 – 275 WIRE FEED CONSOLE, COMFORT
(3D adjustable through linear guide units)

Item number: 1.3.1725

request

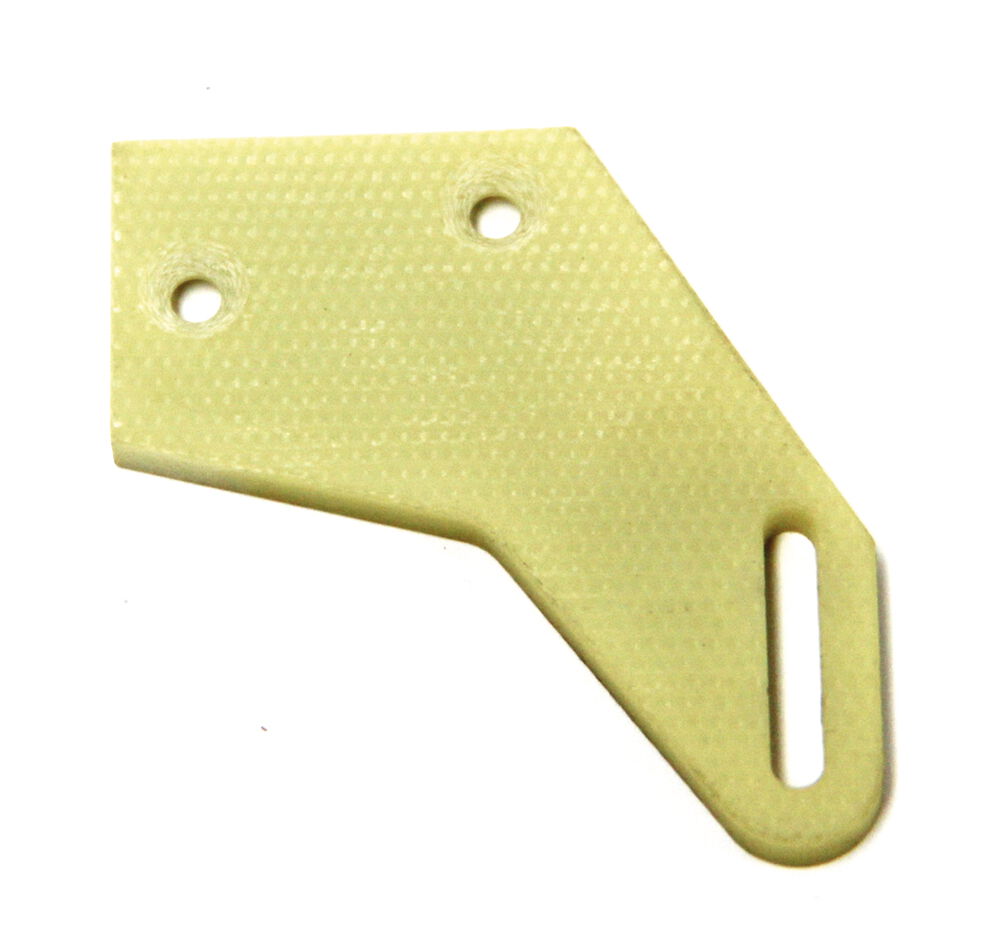

SPARE OSW GRP WIRE HOLDER

SPARE OSW 40 GRP WIRE HOLDER

Item number: 1.0.1619



SPARE OSW 80 – 275 GRP ‘STANDARD’ WIRE HOLDER

Item number: 1.0.1630



SPARE OSW 80 – 275 GRP WIRE HOLDER, INTERNAL

Item number: 1.0.1638

request

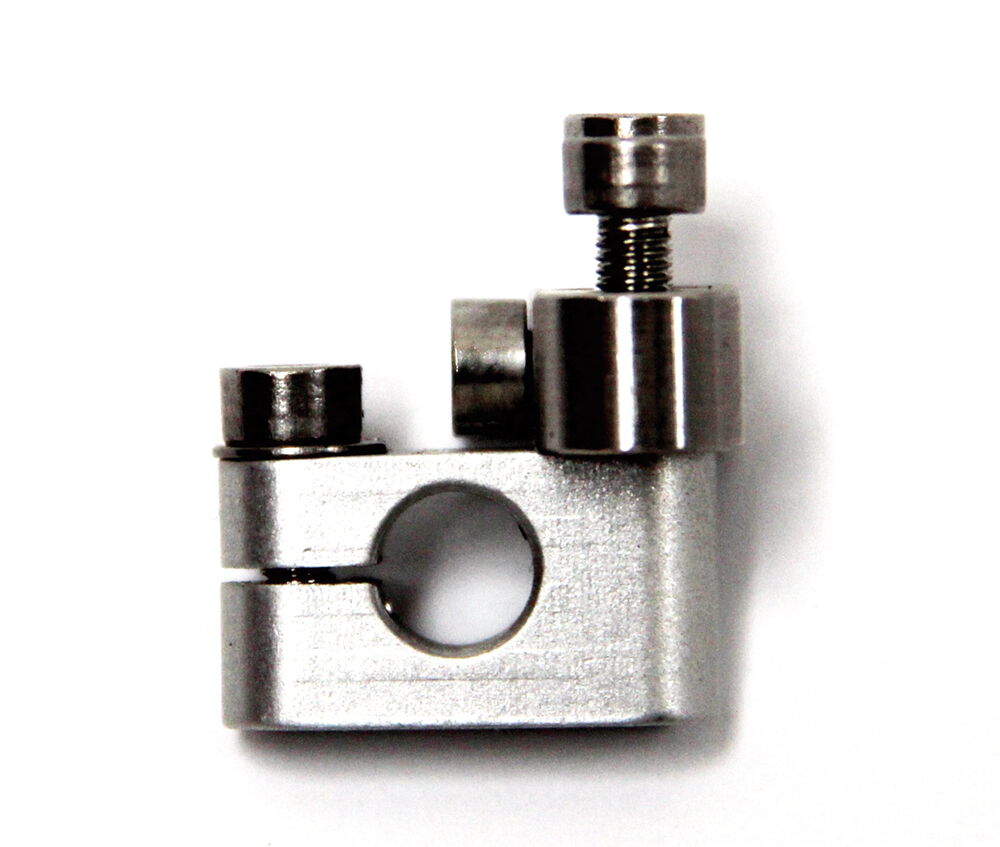

SPARE OSW ALU WIRE HOLDER

SPARE OSW 40 ALU WIRE HOLDER

Item number: 1.0.1639



SPARE OSW 80 – 275 ALU WIRE HOLDER

Item number: 1.0.1634

request
